Balloon Shape and Maximum Diameter Measurement
Applications for Med...Description

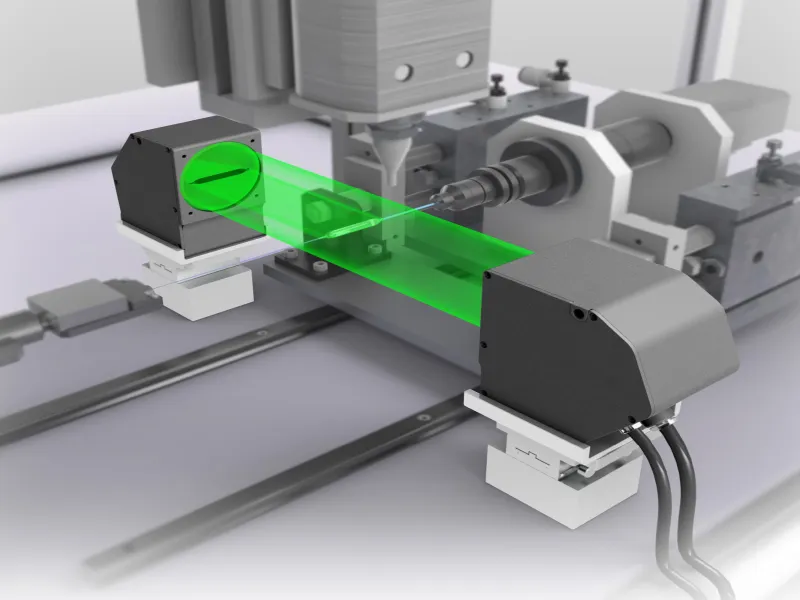

The shape of the balloon can be measured during inflation using a High Speed ​​2D Optical Micrometer. Previously, balloon shapes, such as outer diameter and angles, could only be measured offline using optical comparators. The High Speed ​​2D Optical Micrometer offers high-speed measurements, providing access to real-time process data for 100% inline testing or inspection.
