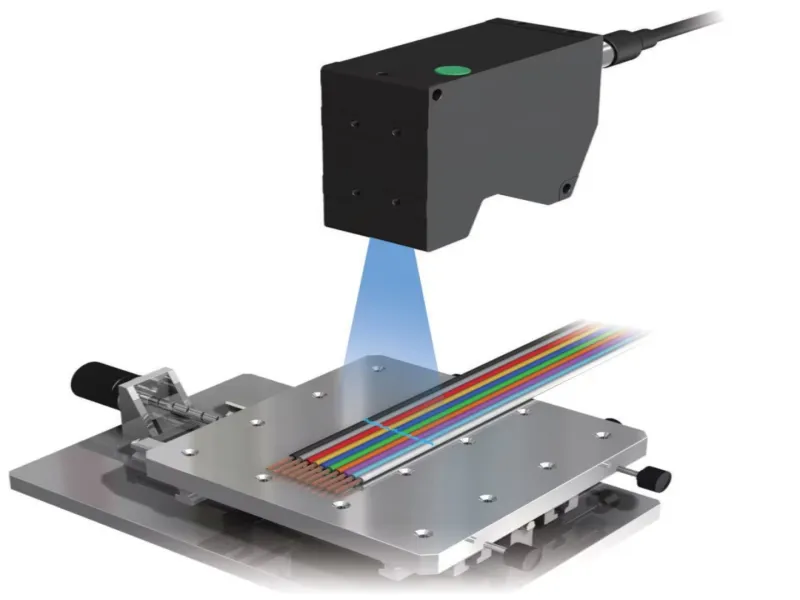

Measurement of Flat Cable Width and Shape
Applications for Pla...Description
High Speed ​​2D Laser Profiler is a 2D displacement sensor that measures the cross-sectional shape and width of flat cables. Stable measurements can be made without being affected by the target material. With this, whether or not the conductor cable arrangement is correct or not can be checked, and measurements for example width suitability can be made.
